Long Range 50ohm 5-28dBi Analogue Tv Antenna Digital Amplified Antenna With Booster

  • 1
  • 2

Certification : CE/FCC/RoHs/REACH

Place of Origin : Guangdong, China

Brand Name : BAIAO or OEM

Model Number : BIO-V084

Packaging Details : Color box,

Number of per carton: 20 PCS,

Outer carton size: 70.5 x 50.5 x 61.5 cm,

Gross/Net Weight/Carton: 17.5/14.5 KG

Supply Ability : 100000 Set/Sets per Week

MOQ : 500 Pieces

Price : $4.50 - $5.30/Pieces

Delivery Time : 5-8 wrok days

Payment Terms : TT

Type : Indoor

Frequency Range : FM/VHF/UHF /DAB

Frequence Range : FM/VHF/UHF /DAB

Impedance : 50ohm / 75 Ohm

V.S.W.R : 3.0 : 1 Max

Polarization : Linear Vertical

Connector type : F/IEC (M) (optional)

Cable type : 2.5C-2V

Cable length : 1m~5m(optional)

Size : 160*105*280 mm

Business type : Manufacturer

Port : SHENZHEN

Contact Now

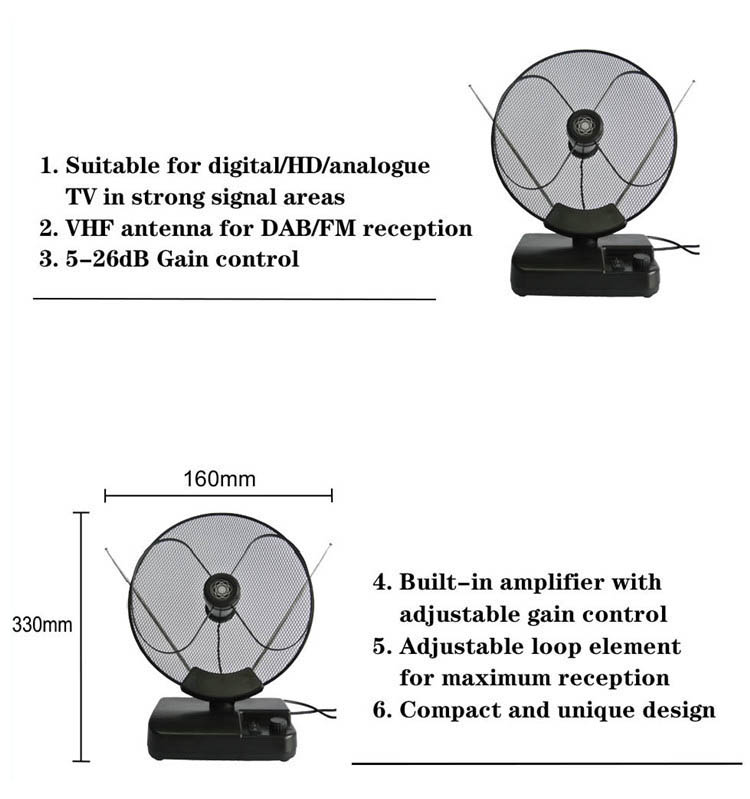

Old Tv Antenna With Booster Tv Antenna Accessories Long Range Tv Antenna

1. Suitable for digitalHD/analogue
TV in strong signal areas
2. VHF antenna for DAB/FM reception
3.5-26dB Gain control
4. Built- -in amplifier with
adjustable gain control
5. Adjustable loop element for maximum reception
6. Compact and unique design

Frequency Range: FM / VHF / UHF / DAB
Gain: 5-28 dBi
Amplifier : 20 dBi / 30 dBi
V.S.W.R.: 3.0:1 Max
Input Impedance: 50 / 70 Ohm
Polarization: Linear
Working voltage: 5 V
Cable type: 3C-2V
Connector F(M) / IEC (M) ( Optional)
Size 330*160*70 mm
Radiation pattern Omi-directional


*Best Crystal Clear Filter Technology!


This antenna picks up signals within a 50-miles range, the crystal clear filter tech filters out cellular and FM signals resulting
in low noise, a clearer picture and access to more free broadcast TV signals with enhanced gain, range and frequency performance.


Long Range 50ohm 5-28dBi Analogue Tv Antenna Digital Amplified Antenna With Booster

1. Suitable for digitaVHD/analogue
TV in strong signal areas
2. VHF antenna for DAB/FM reception3.5-26dB Gain control
4. Built-in amplifier with
adjustable gain control
5. Adjustable loop element
for maximum reception
6. Compact and unique design
Long Range 50ohm 5-28dBi Analogue Tv Antenna Digital Amplified Antenna With Booster

Advantages &special

•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.

We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience
•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services

FAQ

Q : Do you offer samples?
A : Yes, we offer samples for testing.

Q : What's your MOQ?
A : Our MOQ is 500pcs, the first order is negotiable.

Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.

And conducting instrument to test the cable.

Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by

CRH China Railway High-speed.

Q : Do you make OEM products?
A : Yes,we can do.

Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the

material for free.
