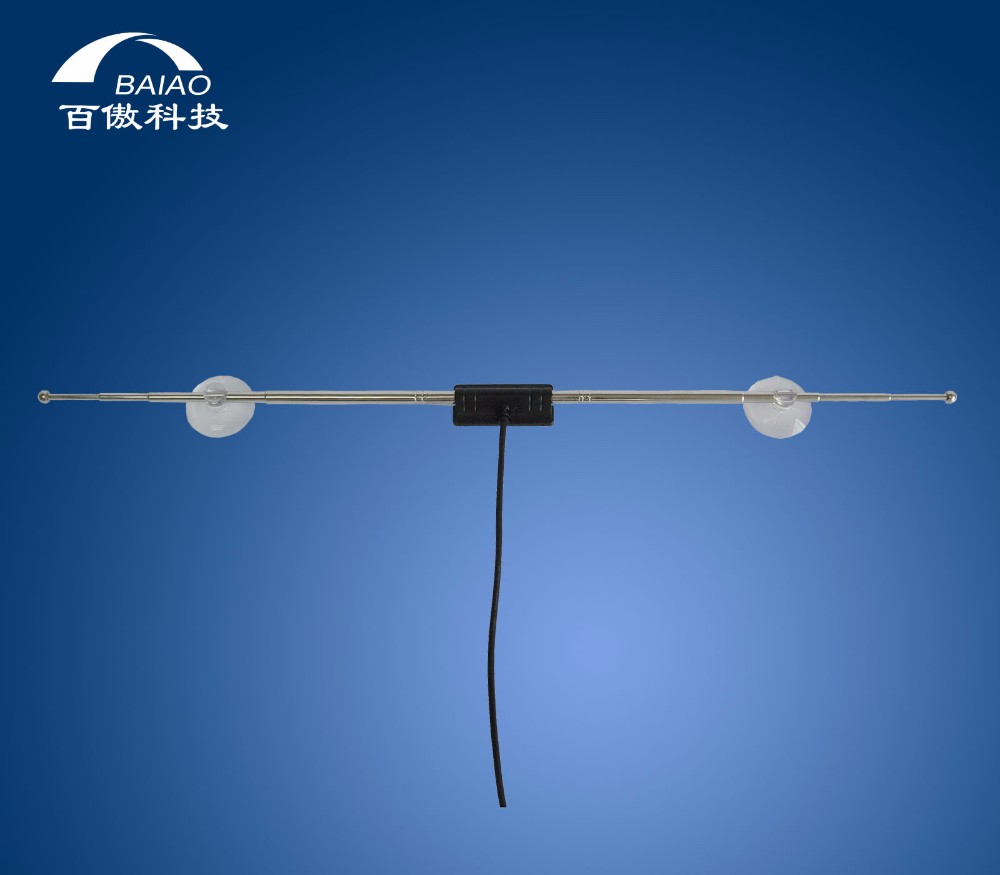

High Gain 75Ohm 5-28dBi Car WIFI Antenna With Sucking Disc Amplifier
Premium Products
High Gain 75Ohm 5-28dBi Car WIFI Antenna With Sucking Disc Amplifier
Certification :RoHS
Place of Origin :Guangdong, China
Brand Name :BIO
Model Number :BIO-V004
Packaging Details :Normal by PE bag, color box, standard carton. According to the special requirements of the customers packaging.
MOQ :10 Pieces
Price :$2.10/Pieces 10-19 Pieces
Delivery Time :5-8 wrok days
Payment Terms :TT
Type :Indoor
Frequency Range :FM/VHF/UHF /DAB
Frequence Range :FM/VHF/UHF /DAB
Gain(dBi) :5-28 dBi (20dB amplifier optional)
Impedance :75 Ohm
V.S.W.R :2.0 : 1 Max
Polarization :Linear Vertical
Connector type :F/IEC (M) (optional)
Cable type :1.5C-2V
Cable length :1m~5m(optional)
Size :680*19*12 mm
Certificate :RoHs / CE
Contact Now

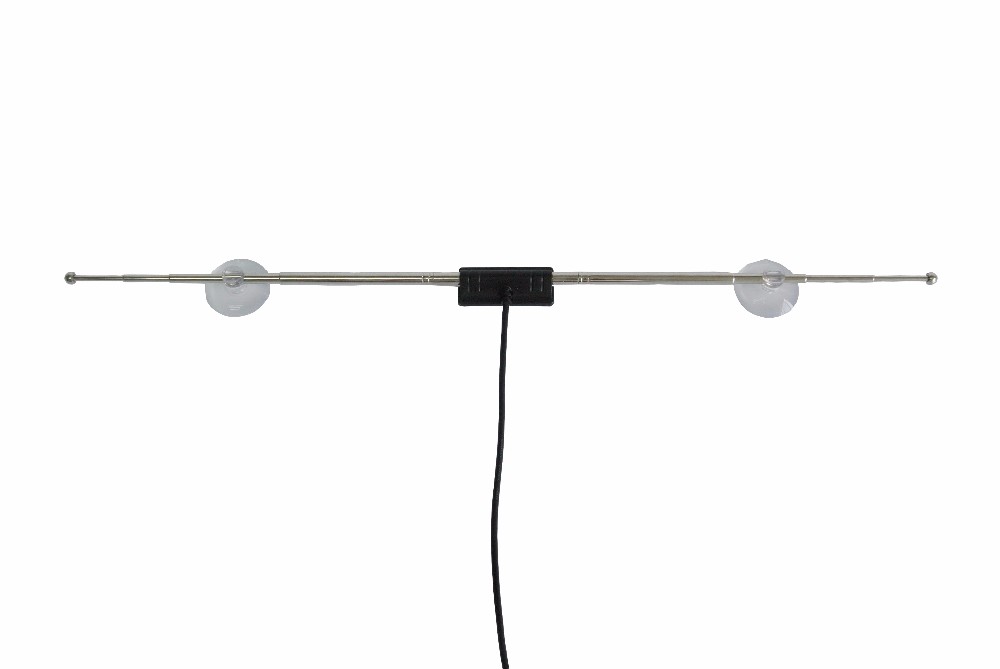

With Sucking Disc Amplifier High Gain Car Digital TV WIFI Antenna
ATSC/DVB-T/ISDB-T :
* Provided with sucking disc , Amplifier, USB power supply , it can easily be mounted for great reception. * Strong signal reception,stable performance,easy installation. * This is a fashionable new models, we are hot-selling now, with beautiful telescopics design .
* Order before we can provide samples for you, which is used to test the practicability of products in your region.
Frequency Range:
FM / VHF / UHF / DAB
Gain:
5-28 dBi
Amplifier :
20 dBi / 30 dBi
V.S.W.R.:
2.0:1 Max
Input Impedance:
75 Ohm
Polarization:
Linear Vertical
Working voltage:
5 V
Cable type:
1.5C-2V / 2.5C-2V
Connector
F(M) / IEC (M) ( Optional)
Size
680*19*12 mm
Radiation pattern
Omi-directional
The Installations:
* This HDTV antenna no need any tools for installation.
* There are 2 sucking disc can be stick on the glass and wall easily.
* Portable TV antenna can be remove easily.
Features:
1) good partner for passive digital outdoor antennas 2) Mini design and water-proof 3) power from STB receiver DC5V workable 4) high gain low noise 5) Compatible with all types of analogue signals and digital signals like DVB-T/DVB-T2/ATSC/ISDB/DMB-T
Product usage introduction
➊Connect the end(f-male)of attached coaxial cable to the ANT/IN connector on the back of the TV or DVB-Ttuner. ➋In the TV/'s setup menu,set the tuner mode to ''Antenna''or''Air''.for more detailed instructions,please refer to your TVmanual. ➌In the Tv/'s setup menu,set TV to ''scan''for channels.this can sometimes be listed as auto-program,auto-scan,channel search or channel scan.consult the tv manual for detailed instructions. ➍If reception is sporadic,try moving the antenua to another location and rescanning the tv until optimal position is found. ➎Fix the antenua at the optimal position you found.
Advantages &special
•Direct factory have better control in the quality and lead time of Antenna Shipment •All production operations comply with ISO 9001:2015 international quality standards. We also have RoHS, CE, and REACH certifications available for All the Antennas. •8 R&D engineers with more than 15 years of Antenna industry experience •OEM/ODM high-end customized service to meet the requirements of different customers. •24H /7D after sales services
FAQ
Q : Do you offer samples? A : Yes, we offer samples for testing.
Q : What's your MOQ? A : Our MOQ is 500pcs, the first order is negotiable.
Q : How do you test your prouducts? A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’ VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.
And conducting instrument to test the cable.
Q : How far your company from Shenzhen? A : It only takes 30 minutes from Luohu railway station to Changping railway station by
CRH China Railway High-speed.
Q : Do you make OEM products? A : Yes,we can do.
Q : Do you have RoHS certification? A : We can do RoHS certifiction according to customers’ requirements. The customers need to charge the handing fee.Or we can provide customers the SGS report of the
